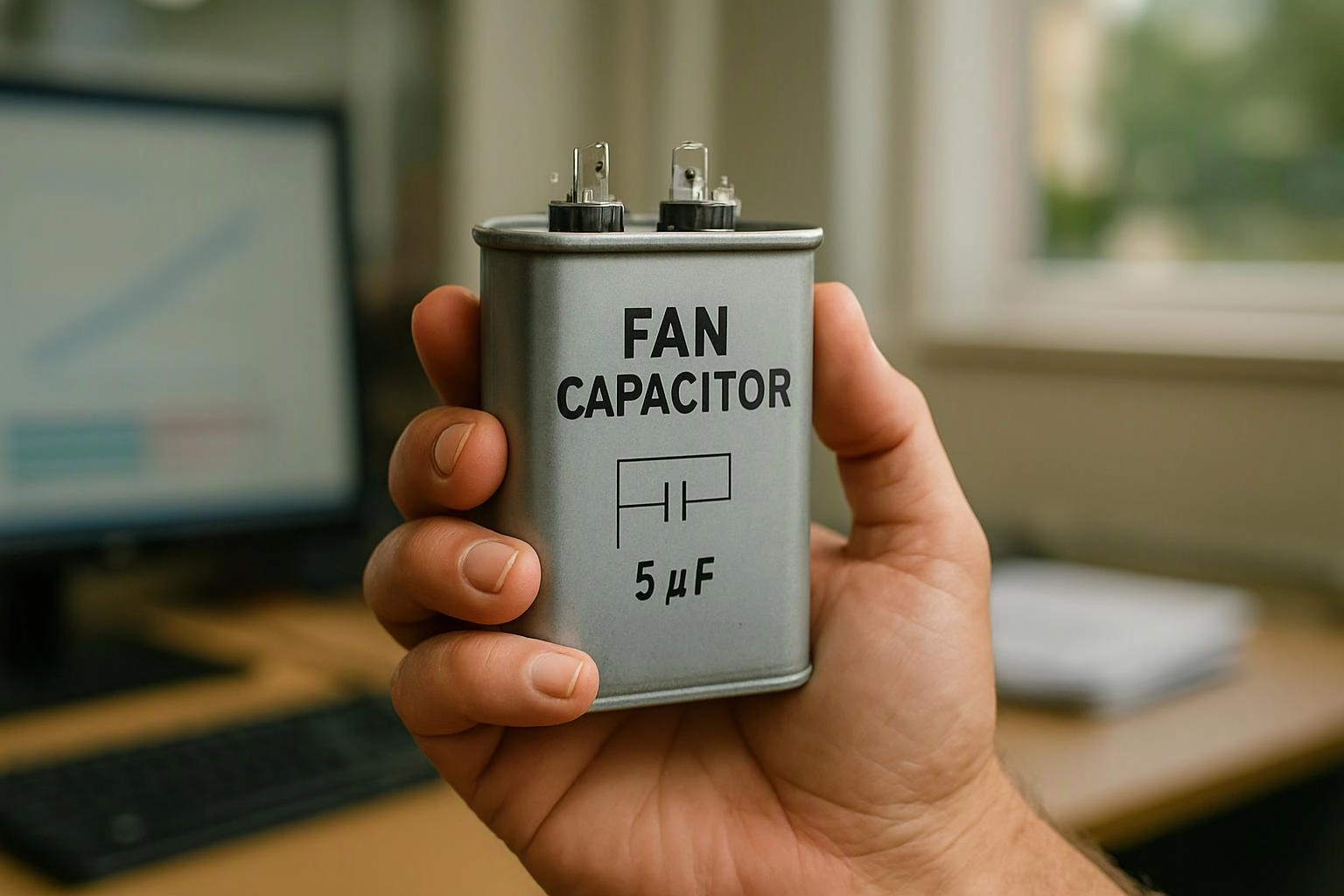

What Is a Fan Capacitor?
A Fan Capacitor is an electrical component that stores and releases energy to help a ceiling fan motor start, run, or change speed. The capacitor creates a phase shift in the motor circuit, which supports rotating magnetic fields. A failed capacitor may leave a fan humming, running slowly, or unable to start.
Quick Facts About Fan Capacitor
Category
Motor control component
Used for
Ceiling fan starting and speed control
Common confusion
Often mistaken for the motor or speed switch
Also called
Ceiling Fan Capacitor, Run capacitor
Often discussed with
Ceiling Fan Installation, Electrical Troubleshooting
Key Takeaways About Fan Capacitor
- A capacitor supports motor starting and speed control.
- Matching capacitance and voltage ratings matters during replacement.
- A capacitor is not the same as a fan motor.
How Fan Capacitor Works
A Fan Capacitor stores electrical energy and releases it at a controlled point in the motor circuit. That timing creates a phase shift between motor windings, which helps produce the rotating magnetic field needed for operation. The capacitor's capacitance and voltage rating must match the fan's design.
Related glossary terms: Junction Box.
A ceiling fan may use separate capacitor sections for different speed settings. A wall control or pull-chain switch selects the circuit path, while the capacitor changes the electrical conditions reaching the motor. A weak capacitor can cause slow operation, humming, difficulty starting, or limited speed control. A ceiling fan motor provides the mechanical rotation, while a speed control selects the desired setting.
From the GMB Electric team
When we inspect a ceiling fan, we check the capacitor alongside the motor, wiring, and control switch. We compare the installed component's markings with the fan's intended specifications. We also look for symptoms that may point to a loose connection or motor problem instead of the capacitor itself.
Fan Capacitor in Practice: A Real-World Example
A ceiling fan turns slowly and hums when the homeowner selects a normal speed. During a ceiling fan installation or service visit, the fan capacitor is checked against the motor and control wiring before a replacement is selected.
