What Is a Junction Box?
Junction Box is an enclosed electrical box that protects and contains connections where wires join, split, or change direction. The enclosure keeps wire connections organized and shields them from accidental contact, physical damage, and environmental exposure. Junction boxes may be metal or nonmetallic and must match the wiring method and installation location.
Quick Facts About Junction Box
Category
Electrical wiring enclosure
Used for
Protecting and organizing wire connections
Common confusion
Often confused with a breaker panel
Also called
Electrical Junction Box, Electrical box
Often discussed with
Electrical Wiring Repair
Key Takeaways About Junction Box
- A junction box encloses wire connections at a shared access point.
- The box must suit the wiring method and installation location.
- A junction box is not the same as a circuit breaker panel.
How Junction Box Works

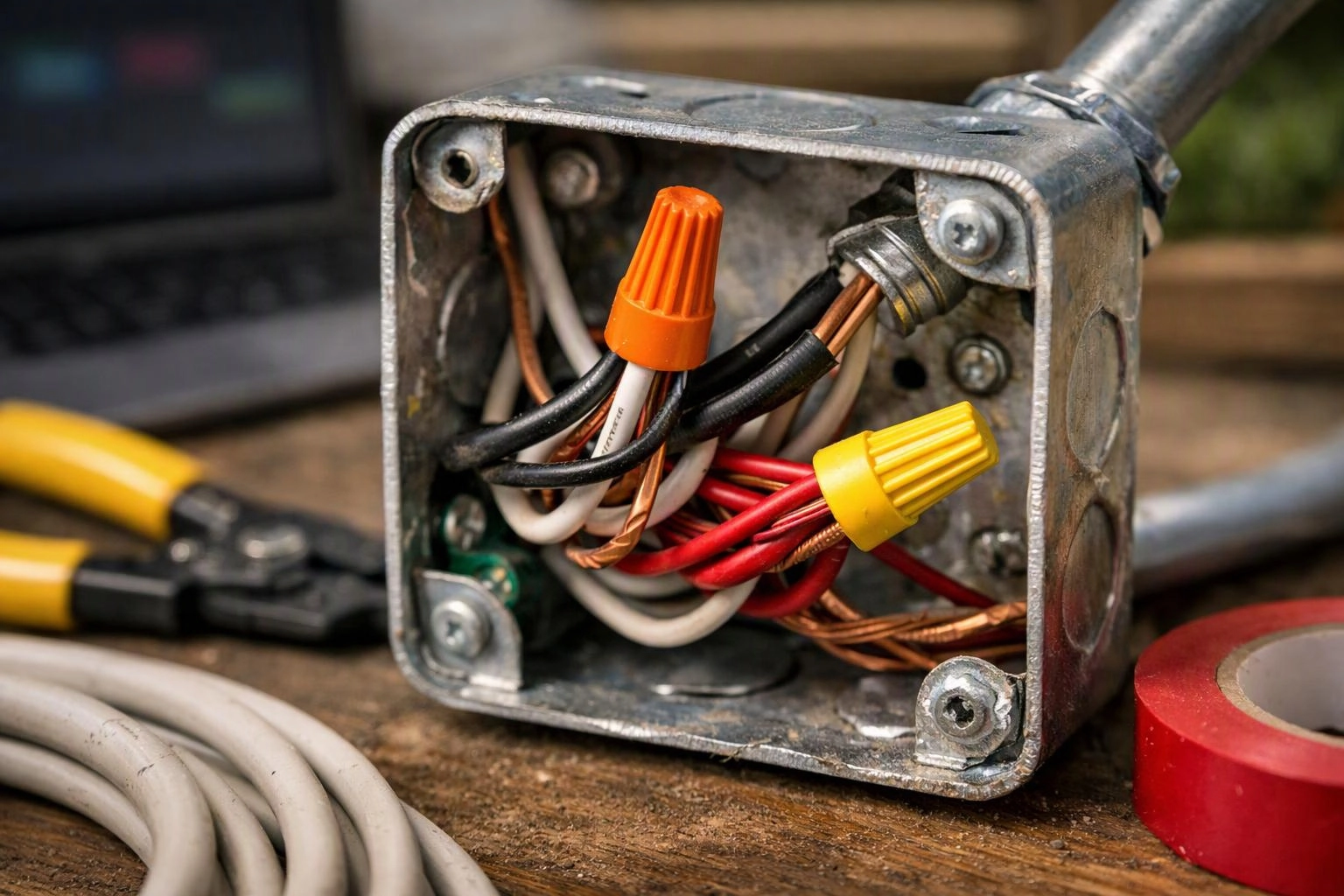

A Junction Box holds wire connections inside a protective enclosure. Wires enter through approved openings, then connect with wire connectors or terminal devices. The box provides a stable space for the connection and keeps the conductors from being left loose inside a wall, ceiling, or other building area.
Related glossary terms: Conduit, Wire Nut, Continuity Test.
The box also supports access for inspection, testing, repair, or future wiring changes. Box size, material, cover, and entry fittings must match the wiring system and location. A wire nut or similar connector joins compatible conductors, while conduit can protect wires as they approach the enclosure. Junction boxes do not control circuit power like a breaker panel.
From the GMB Electric team
When we inspect a junction box, we check the enclosure, cover, wire connections, grounding path, and cable entry points. We also trace each conductor to confirm that the connections serve the intended circuit. During Electrical Wiring Repair, our team looks for loose connections, damaged insulation, overcrowding, or an inaccessible box.
Junction Box in Practice: A Real-World Example
A remodel may require a cable to extend from an existing circuit to a new light switch. The electrician places the splice inside a junction box, secures the cover, and leaves the box accessible for future service.
