What Is Thermal Imaging?
Thermal Imaging is a noncontact inspection method that shows surface temperature differences as an image. An infrared camera detects heat energy from electrical equipment and displays warmer and cooler areas through colors or shades. Electricians use these patterns to identify possible connection, load, or component problems that may require closer testing.
Quick Facts About Thermal Imaging
Category
Electrical inspection method
Used for
Finding unusual heat patterns
Common confusion
It does not diagnose every electrical fault
Also called
Infrared Thermography, Thermal Imaging Camera Inspection
Often discussed with
Electrical Safety Inspection
Key Takeaways About Thermal Imaging
- It displays temperature patterns, not visible light images.
- A warm area signals a need for further testing.
- Thermal imaging does not replace electrical measurements.
How Thermal Imaging Works
Thermal Imaging uses an infrared camera to detect heat energy at the surface of electrical equipment. The camera converts differences in detected heat into a visual image. A technician compares similar connections or components and looks for an unusual pattern that deserves closer examination.
Related glossary terms: Electrical Grounding, Main Breaker, Short Circuit.

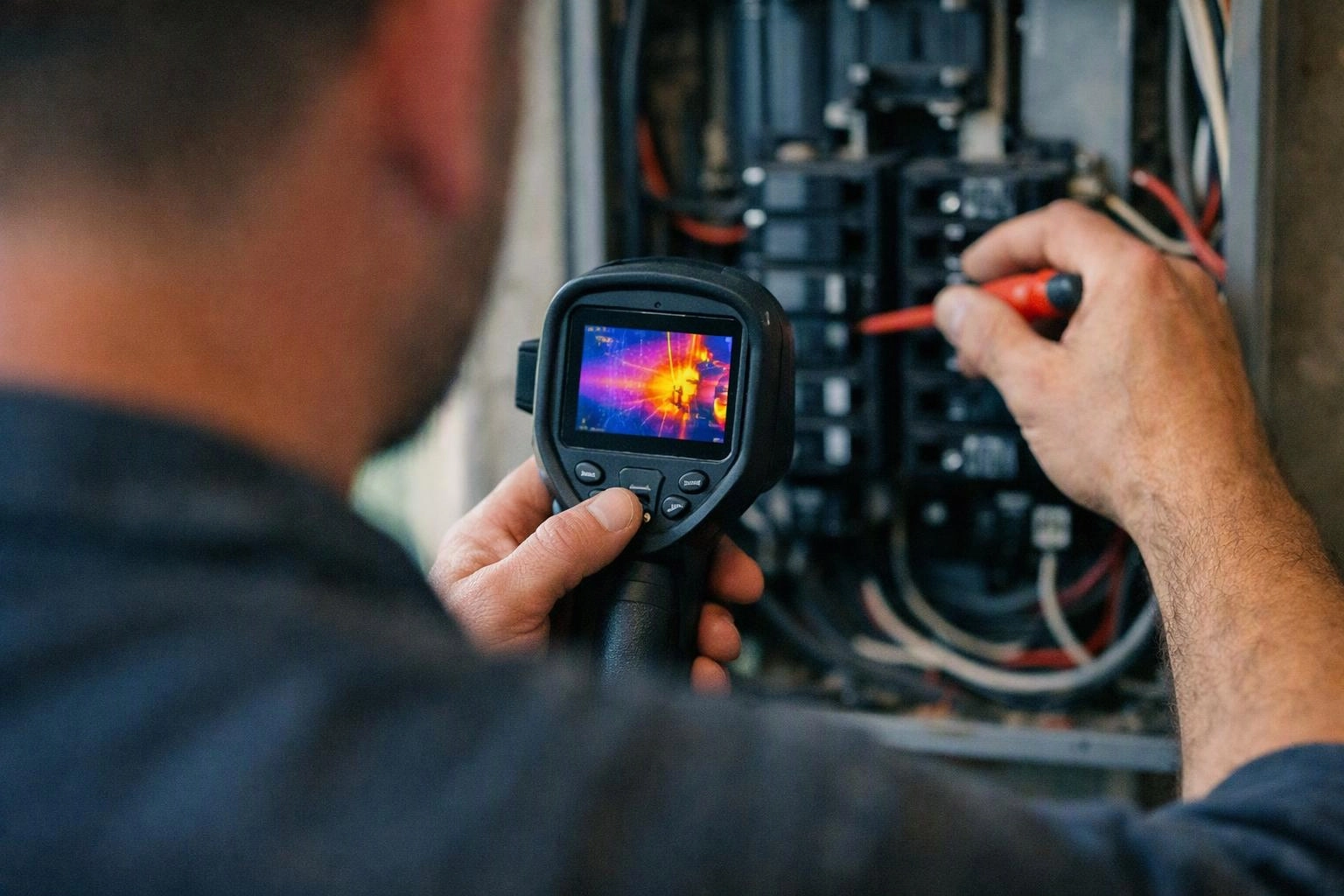

During an electrical safety inspection, the camera may scan a panel, disconnect, or accessible connection while the system operates under its normal conditions. A warm area can result from a loose connection, excess current, damaged equipment, or another condition. The image shows where to investigate, but it does not identify the exact cause by itself. Voltage checks, current measurements, visual inspection, and connection testing may confirm the finding.
From the GMB Electric team
When we use thermal imaging during an electrical safety inspection, we compare related components and examine any unusual heat pattern. We pair the image with visual checks and electrical testing, then document the area that needs attention. Our team treats the camera as an inspection aid, not a complete diagnosis.
Thermal Imaging in Practice: A Real-World Example

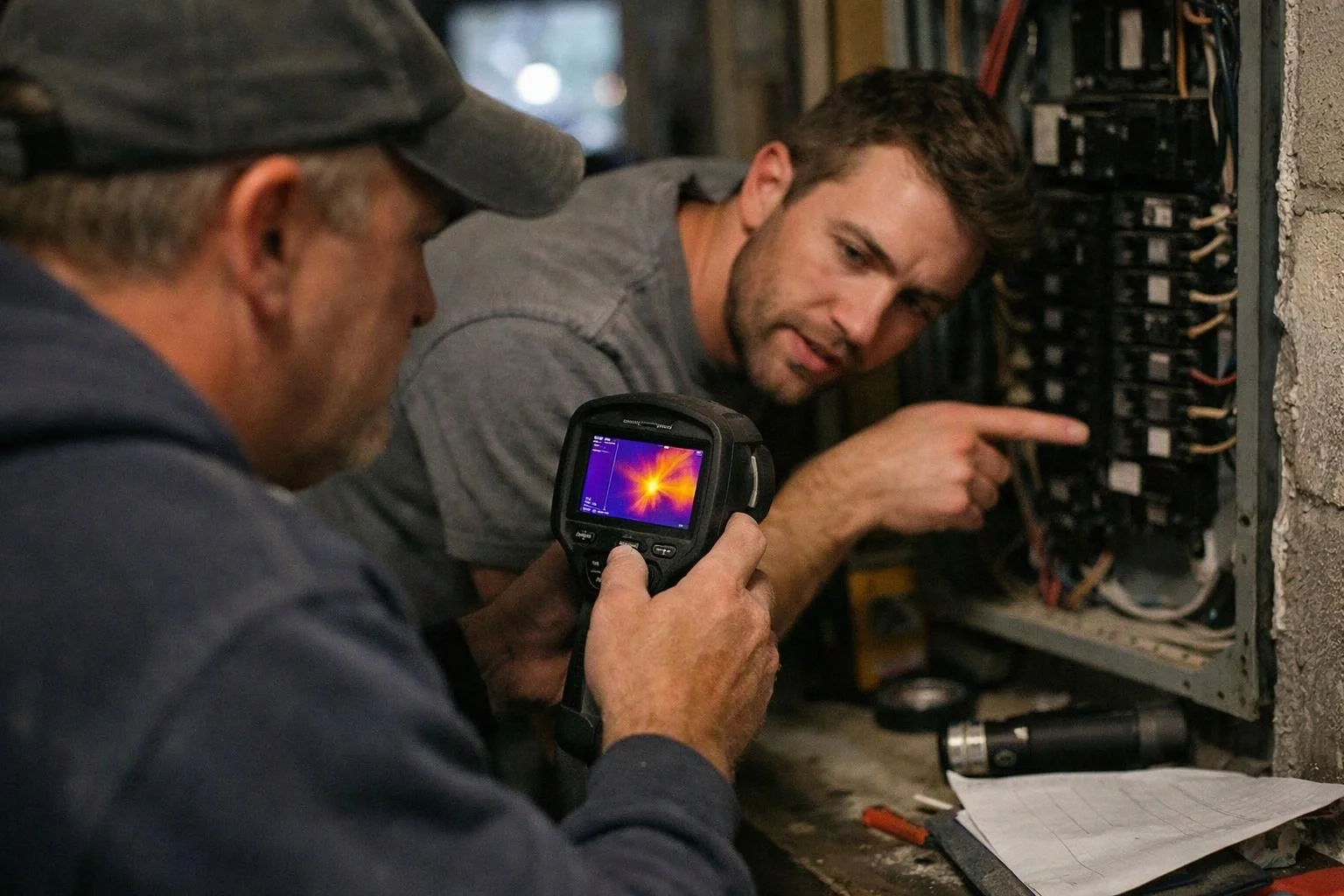

During an electrical safety inspection, a thermal camera may show one breaker connection warmer than nearby connections. The electrician then de-energizes the equipment when appropriate and checks the connection, conductor, and breaker for the underlying problem.
